Use cases

Array ordering in SAD

SAD expects time series of hydraulic variable profiles as 2-D arrays, with the row dimension being the cross-sections from downstream (index 1) to upstream (last index) and the column dimension being time. The time for each column does not have to be continuous, as SAD operates on each one separately. Missing data are acceptable, but do use Julia's missing data type instead of NaN.

Pepsi-1 experiment

We start by loading the data, including river node information and synthetic SWOT observations

using NCDatasets, Statistics, Distributions, Sad
f = Dataset("../../data/pepsi1/Po.nc")
g = NCDatasets.group(f, "XS_Timeseries")
qwbm = NCDatasets.group(f, "River_Info")["QWBM"][1]
x = (g["X"][:][end] .- g["X"][:])[end:-1:1, 1]
Q = g["Q"][:][end:-1:1, :]
H = convert(Matrix{Sad.FloatM}, g["H"][:][end:-1:1, :])
W = convert(Matrix{Sad.FloatM}, g["W"][:][end:-1:1, :])

Bankfull width and water surface elevation can be guessed as the maximum from the observed time series, while an initial estimate of bed slope can be obtained from the mean of surface water slope

wbf = maximum.(skipmissing.(eachrow(W)))
hbf = maximum.(skipmissing.(eachrow(H)))
S = diff(H, dims=1) ./ diff(x)
S = [S[1, :]'; S]
S0 = mean(S, dims=2)[:, 1]
S = convert(Matrix{Sad.FloatM}, S)

Then we can derive the prior distributions using rejection sampling from uninformative priors

Qp0, np0, rp0, zp0 = Sad.priors(qwbm, minimum(H[1, :]), Sad.sinuous)
Qp, np, rp, zp = Sad.rejection_sampling(Qp0, np0, rp0, zp0, x, H, S0, wbf, hbf, 100, 1000)

The ensemble of discharge, roughness coefficient, channel shape parameter and bed elevation can now be generated

Qe, ne, re, ze = Sad.prior_ensemble(x, Qp, np, rp, zp, 100);

Bed elevation and slope are then estimated by assimilating the time-average water surface elevation profile

Se = Sad.bathymetry!(ze, S, S0, Qe, ne, re, x, hbf, wbf, mean.(skipmissing.(eachrow(H))))
zp = truncated(Normal(mean(ze[1, :]), 1e-3), -Inf, minimum(H[1, :]))
Sa = mean(Se, dims=2)[:, 1]

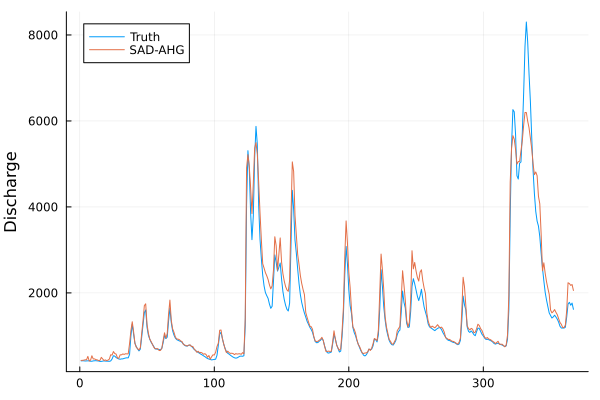

and finally we assimilate the observed water surface elevation to estimate discharge and flow parameters, which include roughness coefficient and minimum cross-sectional area

Qa, Qu, na = Sad.assimilate(H, W, S, x, wbf, hbf, Sa, Qp, np, rp, zp, 100)

Pepsi-2 experiment

The Pepsi-2 experiment added more river case studies as well as more realistic synthetic SWOT observations with partial reach coverage and observation errors. Most of the code described above for the Pepsi-1 experiment is contained within the Sad.estimate function. We start by loading the data

using NCDatasets, Statistics, Distributions, Sad
f = Dataset("../../data/pepsi2/phase3/ArialKhan.nc")
g = NCDatasets.group(f, "XS_Timeseries")
qwbm = NCDatasets.group(f, "River_Info")["QWBM"][1]
x = (g["X"][:][end] .- g["X"][:])[end:-1:1, 1]
Q = g["Q"][:][end:-1:1, :]
H = convert(Matrix{Sad.FloatM}, g["H"][:][end:-1:1, :])
W = convert(Matrix{Sad.FloatM}, g["W"][:][end:-1:1, :])

The Sad.FloatM is an alias to Union(Missing, Float64) type to be able to handle missing data.

H[H .== -9999.0] .= missing
W[W .== -9999.0] .= missing

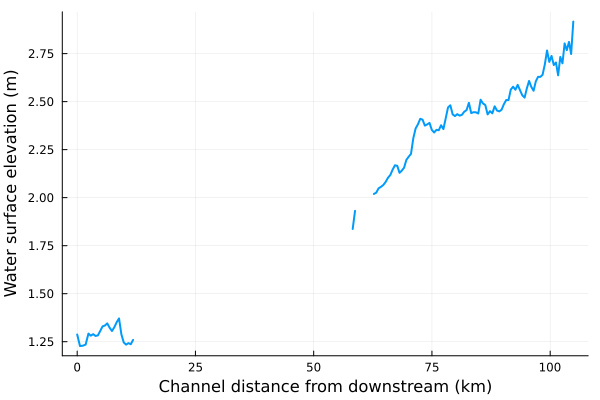

The water surface elevations for a SWOT satellite overpass are shown in the figure below

We will get the prior distributions and calculate surface water slopes

Qp0, np0, rp0, zp0 = Sad.priors(qwbm, minimum(skipmissing(H[1, :])), Sad.braided)
S = diff(H, dims=1) ./ diff(x)
S = [S[1, :]'; S]

and then estimate discharge and flow parameters

Qa, Qu, A0, n = Sad.estimate(x, H, W, S, Qp0, np0, rp0, zp0, 100, 1000)

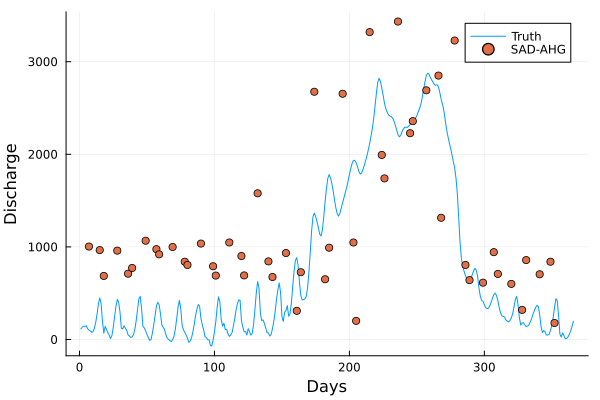

arial

Confluence

Confluence is the framework that will be operationally implementing the multiple discharge estimation algorithms (SAD being one of them) for SWOT. The priors are obtained from SWORD

We start by setting the necessary file names and reading the river reach information

swordfile = "../../data/sword/na_sword_v14.nc"
sosfile = "../../data/sos/na_sword_v11_SOS_priors_dylan.nc"
reachid = 74267400111
nids, x = river_info(reachid, swordfile)

Then we read the SWOT observations and remove any cross sections that do not have any valid observations

swotfile = "../../data/swot/$(reachid)_SWOT.nc"
H, W, S, dA, Hr, Wr, Sr = read_swot_obs(swotfile, nids)
x, H, W, S = Sad.drop_unobserved(x, H, W, S)

The priors are estimated next

Hmin = minimum(skipmissing(H[1, :]))
Qp, np, rp, zp = Sad.priors(sosfile, Hmin, reachid)

Finally, we estimate discharge and the flow parameters

nens = 100
nsamples = 1000
Qa, Qu, A0, n = Sad.estimate(x, H, W, S, dA, Qp, np, rp, zp, nens, nsamples)
